OVERVIEW

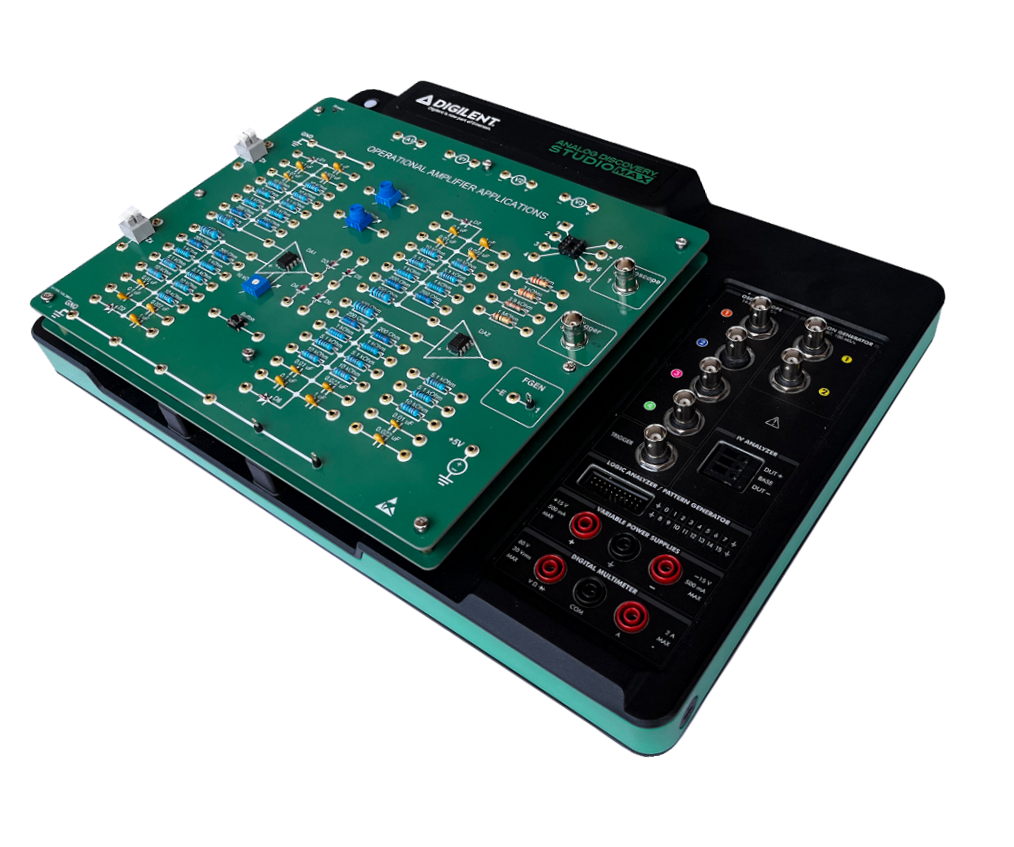

The Operational Amplifiers Applications Lab is based on the NI Analog Discovery Studio Max platform. The software is developed in the NI LabVIEW graphical programming environment. All hands-on experiments are conducted on the preassembled printed circuit board. The students can study the output signals of the circuits depending on the input stimulus.
The course manual is embedded in lab software for easy access to ad-hoc theoretical materials during the lab. Experimental results of the lab may be exported and saved in MS Excel format (including student name, date, time, and studied circuit). Course software has a simple and intuitive user interface.
